Mold Analysis And Product Analysis
Product Model Introduction
The Location of Nozzle
Material
Fill time- contour
Fill time-Animation
Pressure at V/P switchover
Pressure at injection location
Clamp force: XY
Weld Lines
Air Traps
Volumetric Shrinkage at Ejection
Sink Mark Estimate
Deflection, all effects : Deflection
Parting Line
Demoulding Angle
Wall Thickness
Ejection
Other Questions

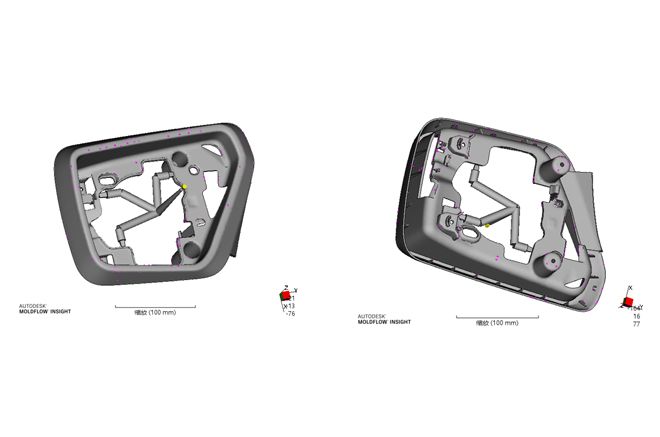

Product Model Introduction

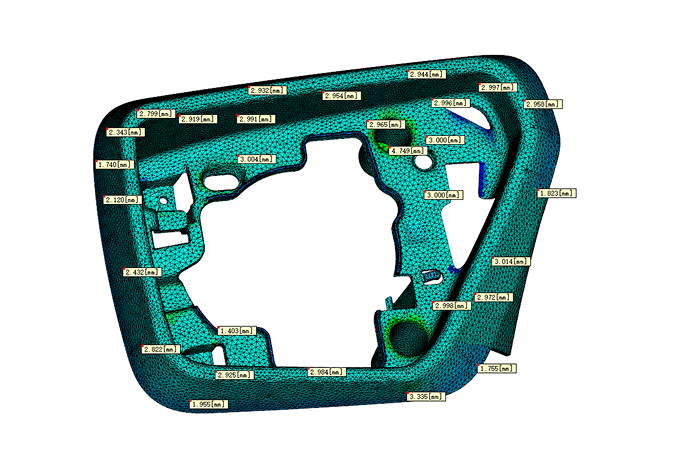

Thickness
| Part weight(g) | 260g |
| The size of part-A (mm) | 199.75X271.55X117.6 |
| (No of cavity) | 1 |
| (Average thickness)(mm) | 3 |

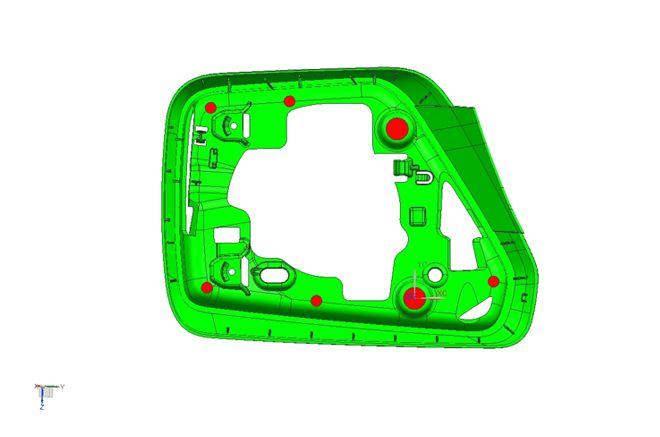

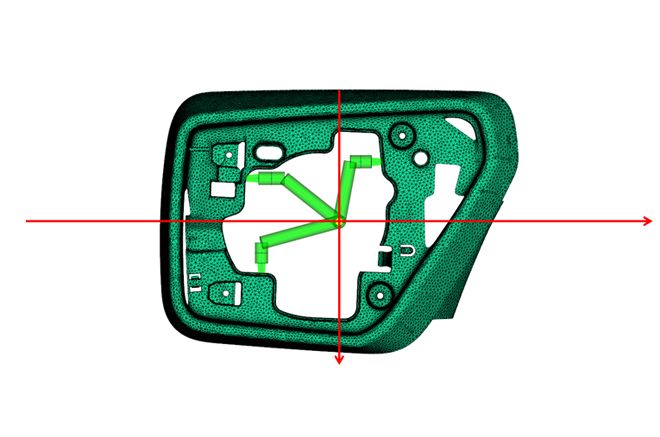

The Location of Nozzle

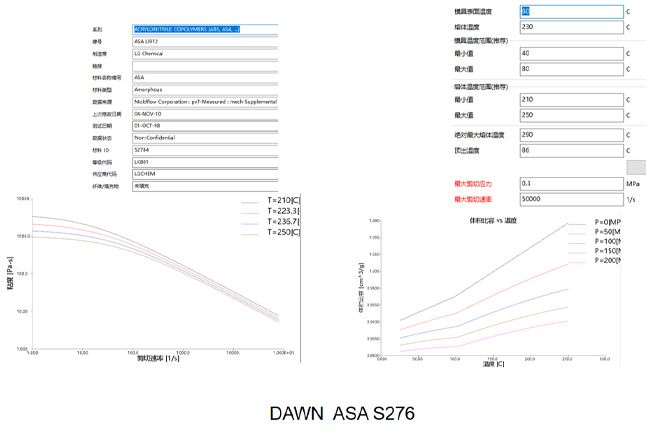

Material

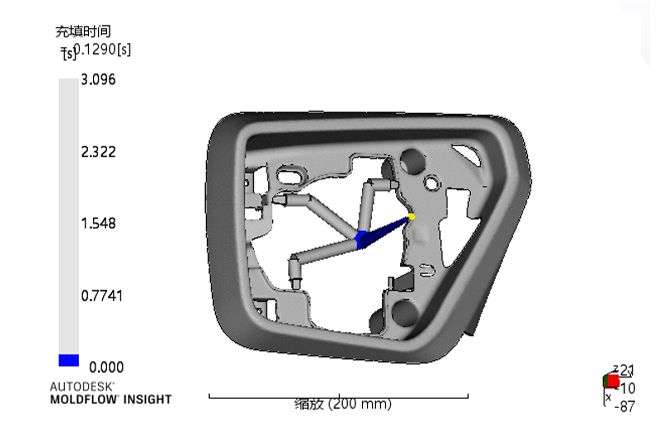

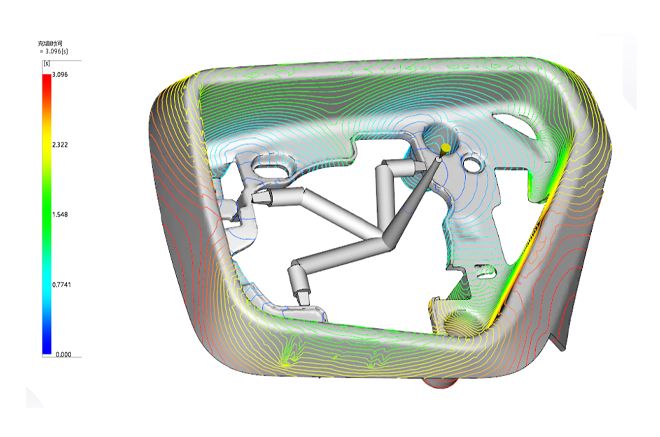

Fill time- contour
| Fill time(sec) | 3.096 | Whether there is clear hesitation | NO |
Fill time-Animation
Press shift+F5 to watch animation
Pressure at V/P switchover
| The pressure at v/p switchover(Mpa) | 42.24 |

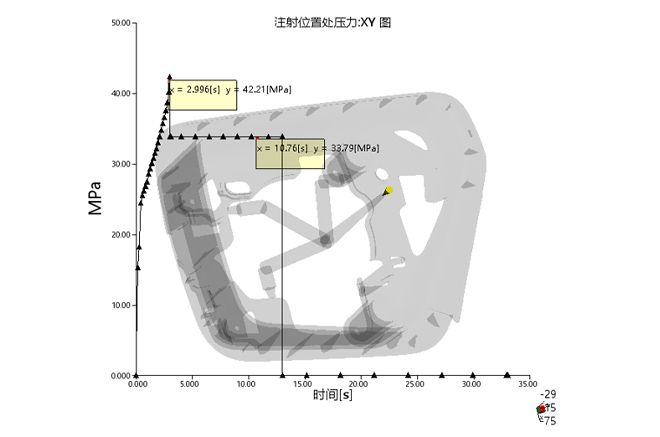

Pressure at injection location
| The max. pressure value(Mpa) | 42.21 |
| Max. pressure value reasonable | yes |

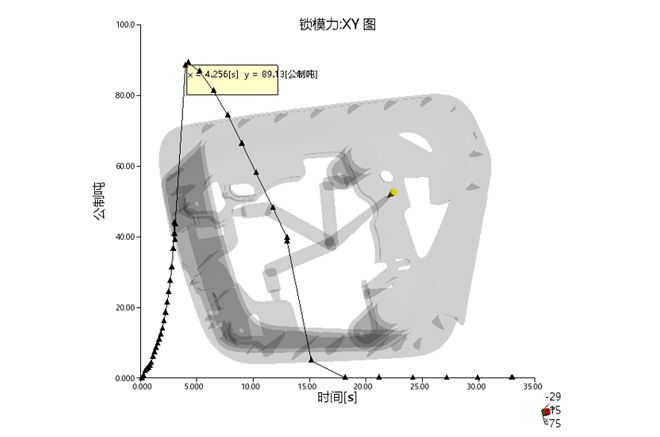

Clamp force: XY
| The max. Clamp force value (tonne) | 89.13T |

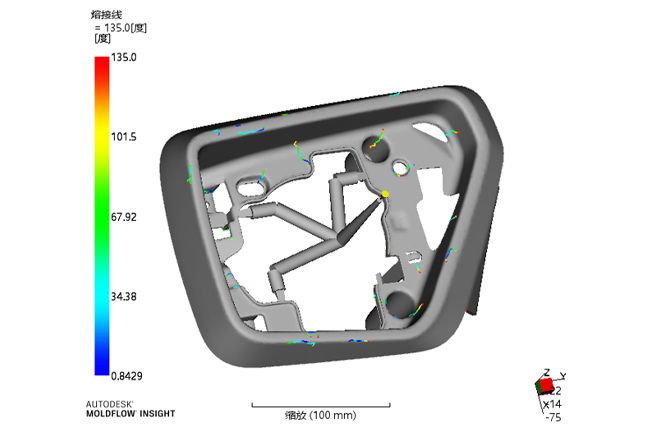

Weld Lines
| Have or not clear weld lines at appearance surface | YES |
Air Traps
| Must make exhaust where have weld line and the end of filling. | |
| Serious air traps | NO |

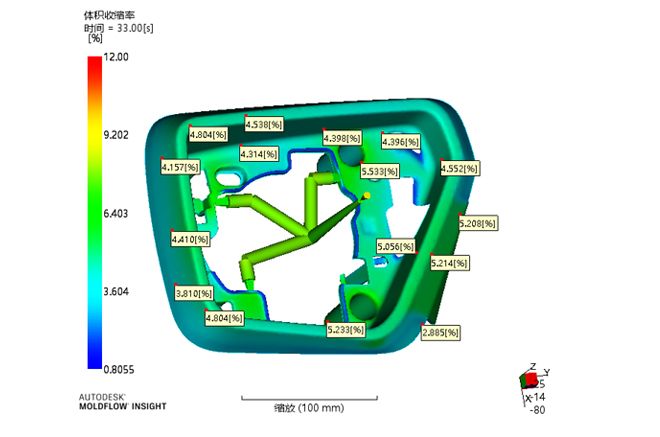

Volumetric Shrinkage at Ejection
| SHRINKAGE EVEN | |
| VOLUNM SHRINKAGE SHOULD BE EVEN | YES |

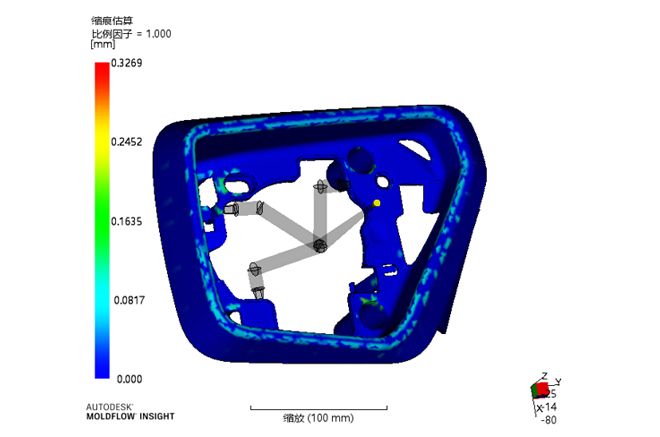

Sink Mark Estimate
| No sink mark on the surface | |
| This shoulds the sink mark deeps. Sink mark always happens on the ribs, colums and inner angle location. | / |

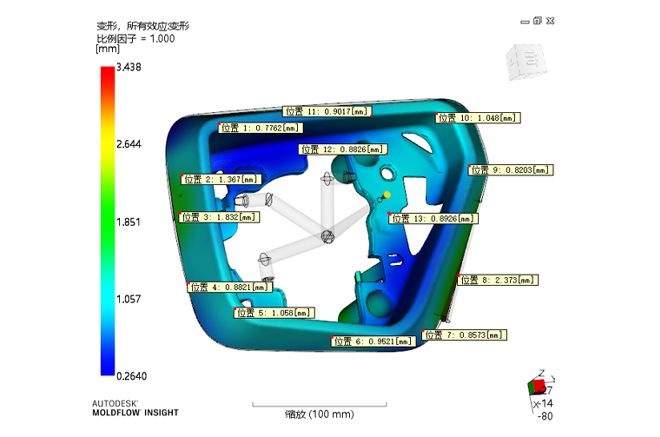

Deflection, all effects : Deflection
| The deflection is include uniform shrinkage. | |
| The scale of deflection | 1 |
| Total deflection value(mm) | 3.438 |

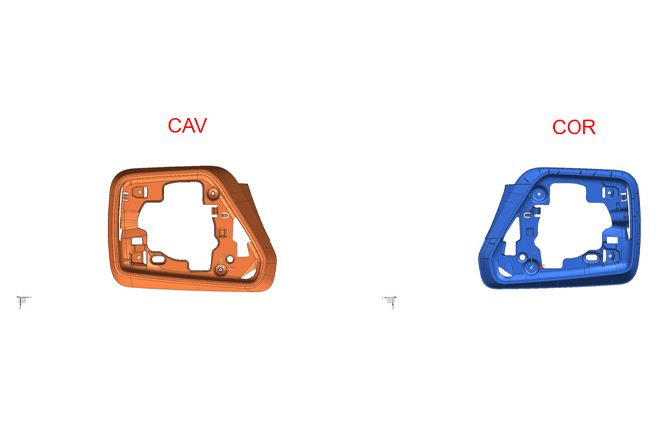

Parting Line

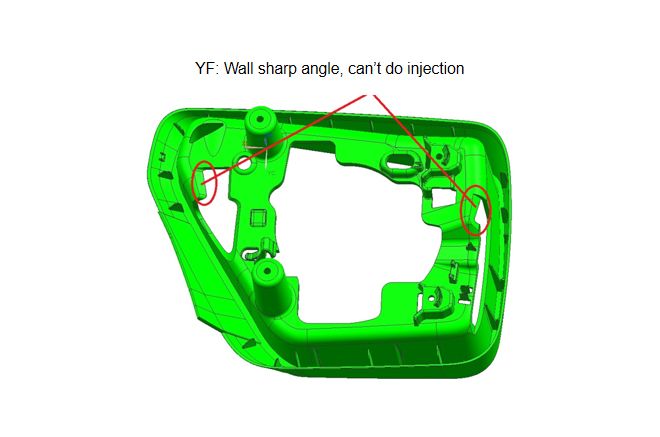

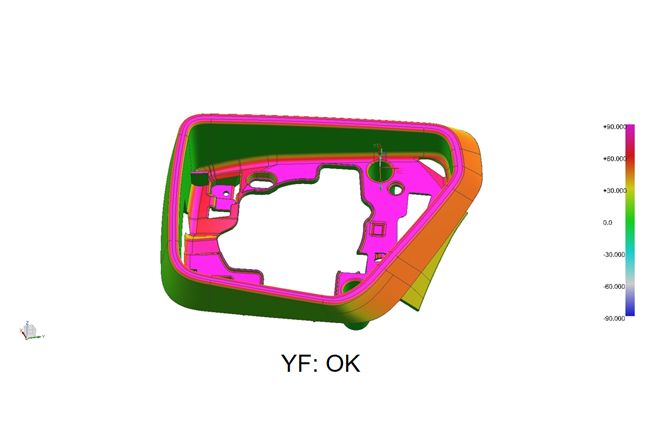

Demoulding Angle

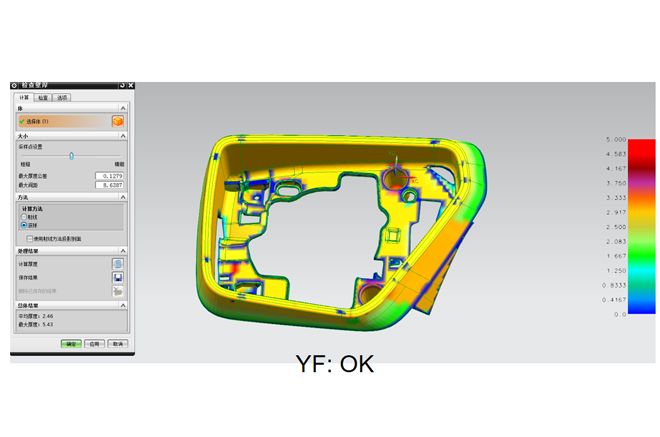

Wall Thickness
Ejection
Other Questions

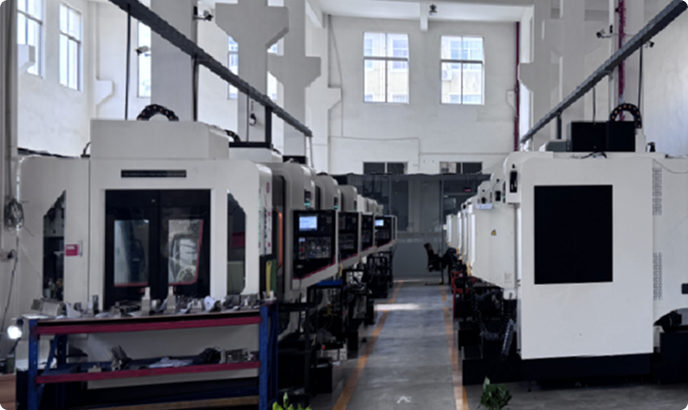

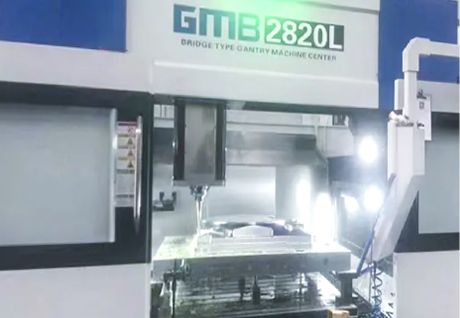

Machining Center
| WORKBENCH | High-speed three-axis machining centers |
| QUANTITY | 3 |
| LENGTH X WIDTH | 860×500mm |
| MAXIMUM LOAD | 600kg |
| PROCESSING RANGE | 250×250×250mm |
| X-AXIS/Y-AXIS/Z-AXIS TRAVEL | 700*500*500mm |
| WORKBENCH | High-speed four-axis machining centers |
| QUANTITY | 8 |
| LENGTH X WIDTH | 1060×500mm |
| MAXIMUM LOAD | 800kg |
| PROCESSING RANGE | 250×250×250mm |
| X-AXIS/Y-AXIS/Z-AXIS TRAVEL | 900*650*600mm |
| WORKBENCH | High-speed five-axis machining centers |
| QUANTITY | 2 |
| LENGTH X WIDTH | 1060×500mm |
| MAXIMUM LOAD | 800kg |
| PROCESSING RANGE | 250×250×250mm |
| X-AXIS/Y-AXIS/Z-AXIS TRAVEL | 900*650*600mm |

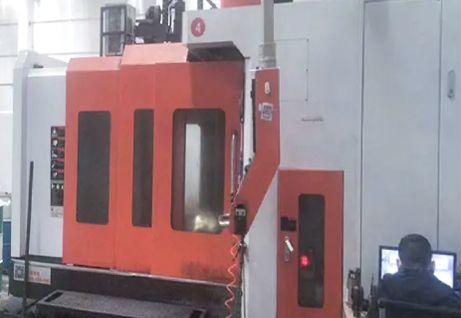

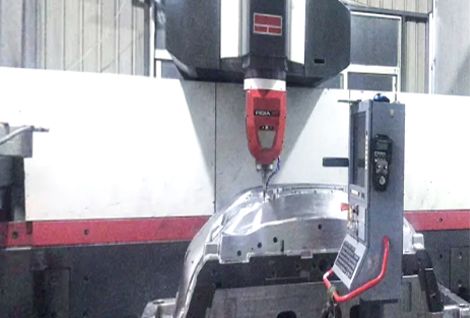

Equipments
