Grille

Automotive Plastic Injection Grille

Applications:

Automotive Parts Exterior Part


Manufacturing Process:

Injection molding uses high-precision molds to ensure product dimensional stability and precise assembly.

Share:

Ingredients

PP-TD20

PP-TD20 is the primary material, offering excellent impact and weather resistance, making it suitable for exterior components such as bumpers and grilles. This material maintains excellent toughness even at low temperatures, and, combined with the internal ribbed structure, enhances overall collision safety. The injection molding process is stable, resulting in high dimensional accuracy, and the surface can be painted or unpainted to meet diverse aesthetic requirements.


It is widely used in front fascia systems for passenger cars, SUVs, and commercial vehicles, adapting to a variety of vehicle platforms. Care should be taken to avoid prolonged exposure to strong UV rays to prevent surface degradation.

Parameters And Specifications

1DensityISO 1183-1g/cm^31.06
2Tensile Strength at YieldISO 527-2MPa27 50mm/min
3Flexural ModulusISO 178MPa2400 2mm/min,64mm
4Notched Impact StrengthISO 179-1kJ/m^24.5 23℃
5Notched Impact StrengthISO 179-1kJ/m^22.2 -40℃
6Heat Deflection Temp.ISO 75-258 1.8MPa
7Melt Flow RateISO 1133-1g/10min18 230℃×2.16kg
8Filler ContentISO 3451-1%21
9Flammability(Burn Rate)ISO 3795mm/min44

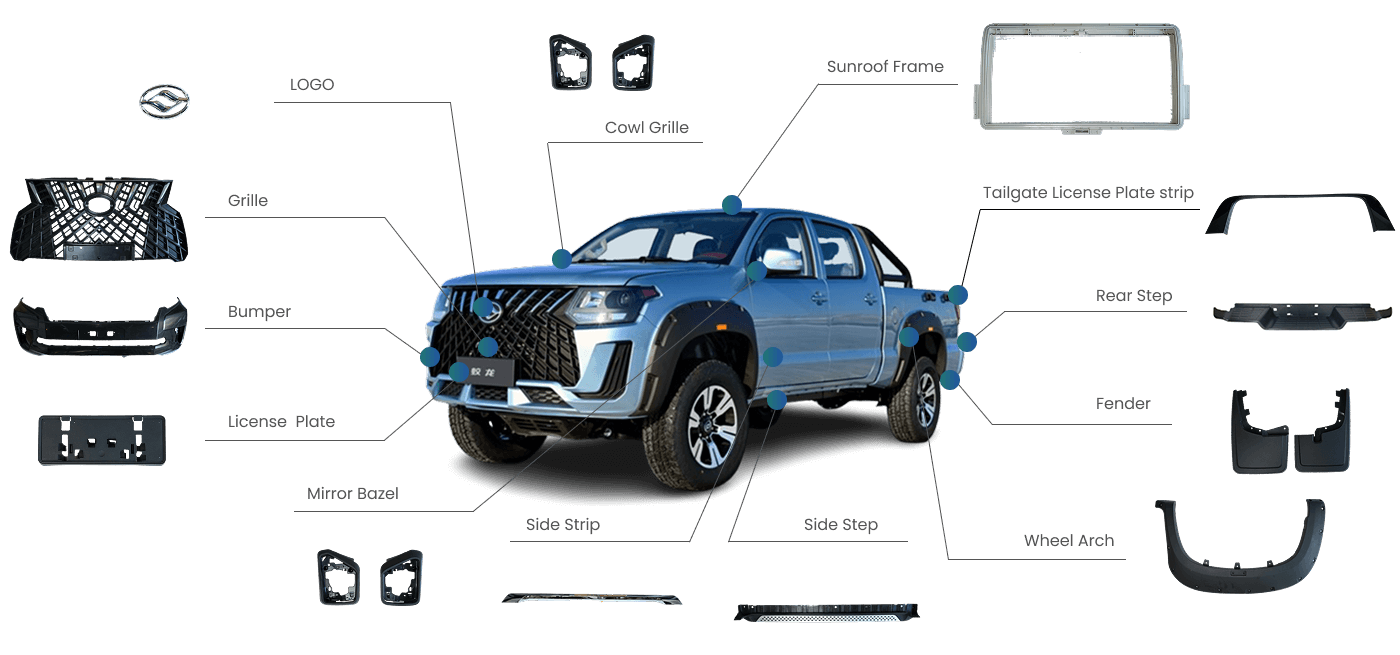

Automotive Exterior Products

IAN06614

OEM Sample Parts

Factory Showcase

In the past 30 years, YongFeng is working with domestic and over-sea car companies to provide OEM and ODM services.

Including Korea,Japan, Germany, Australia and more...

YongFeng Factory Showcase
YongFeng Factory Showcase
YongFeng Factory Showcase
YongFeng Factory Showcase
YongFeng Factory Showcase
YongFeng Factory Showcase

One-Stop Service | Mold Design, Injection Molding, Assembly Integration

Customize and design a complete production system solution for automotive plastic injection molding parts processing to meet your production needs
